IKO Needle Roller Bearing

Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and needle roller assembly featuring small section height,big load capacity & rigidity,compact structure and small size,high rotating accuracy with the structure of disposed inner ring. Needle roller bearings have large bearing capacity and are suitable for mounting support structures with limited dimensions. The surface of the journal is hardened as the rolling surface, and the bearing is pressed into the seat hole without axial positioning. Needle roller bearing is characterized by multiple structures,broad adaptability and easy installation.

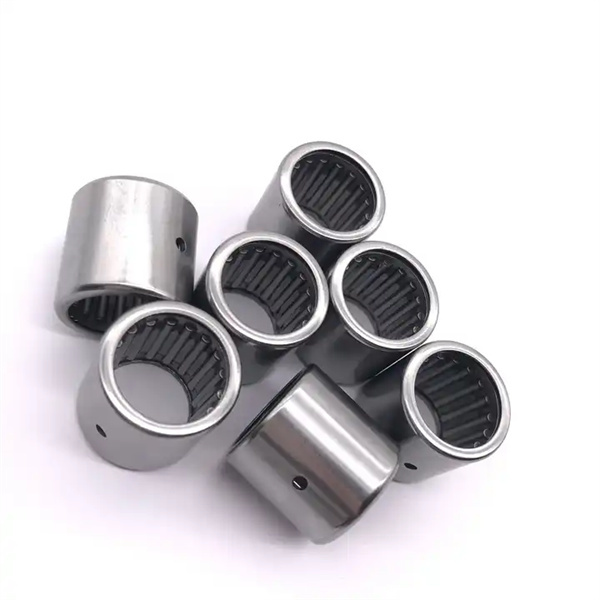

Mechanical Equipment Bearing IKO HK5038 Needle Roller Bearing

A needle roller bearing is a special type of roller bearing which uses long, thin cylindrical rollers resembling needles. Ordinary roller bearings' rollers are only slightly longer than their diameter, but needle bearings typically have rollers that are at least four times longer than their diameter.Suitable across a range of operating conditions, these bearings feature rings made of carefully selected vacuum-degassed bearing steel or carburized steel and precision-ground, heat-treated rollers.

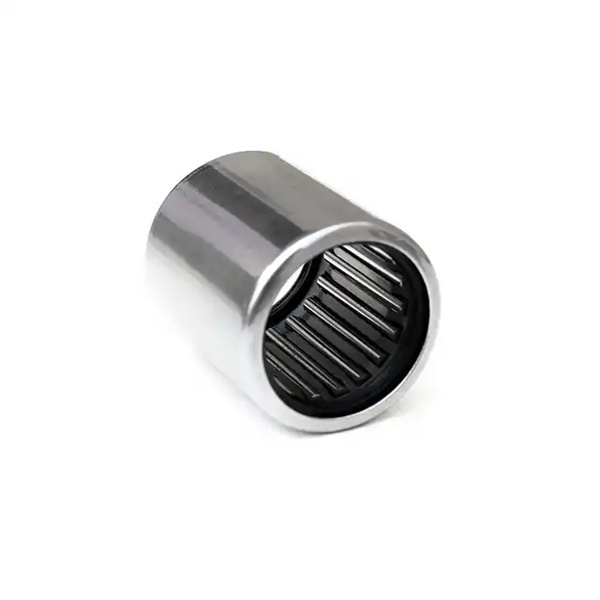

IKO Needle Roller Bearings HK3018

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

DB83562 Needle Roller Bearing

Needle roller bearings are a bearing that is classified as either radial or thrust depending on the direction of the load being supported. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup and solid radial bearings, as well as application-specific cam followers, and roller followers. Thrust bearings include thrust needle bearings.Drawn cup needle roller bearings (with a cage and full complement of rollers) have a unique outer ring structure. They have the following features: the thinnest outer ring among rolling bearings, high load capacity, high maximum permissive load owing to the use of carefully selected special alloy steel plates, a surface-hardened cage with high resistance to wear, high limiting speed, and ease of mounting.

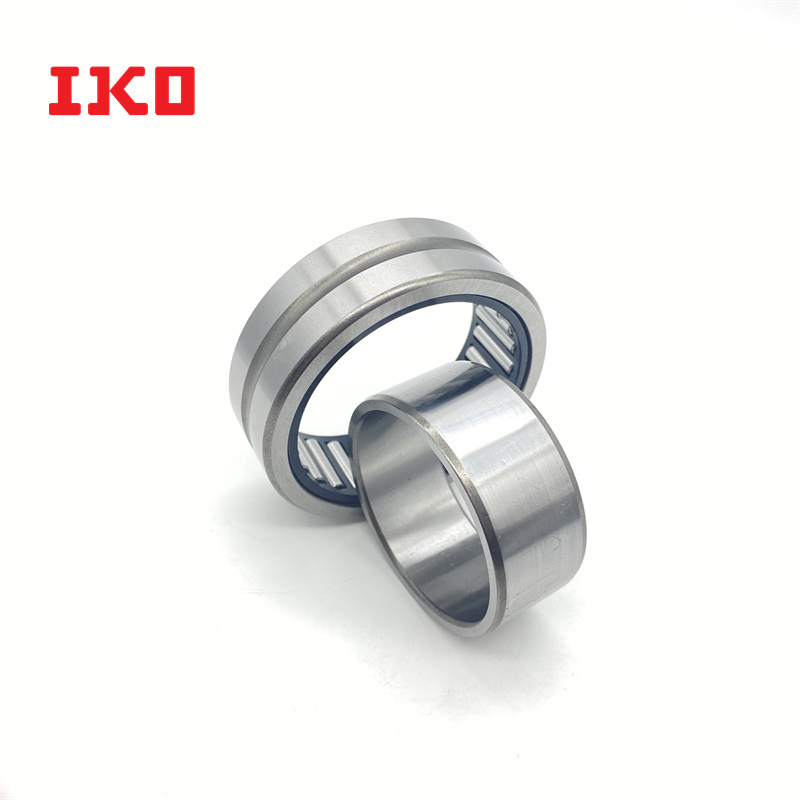

IKO NA4932 Needle Roller Bearing

Needle Roller Bearings (needle bearing) is a cylindrical roller with roller bearings, relative to its diameter, roller both thin and long. This is called needle roller. Despite having a smaller cross-section,has a higher load bearing capacity, equipped with a thin and long needle bearing roller (roller diameter D≤5mm,L / D≥2.5, L is the length of the roller), so radial structure is compact, its diameter size and load capacity and other types of bearings, minimum diameter, especially for radial dimensions limited support structure.
